［第６４回］
●ＣＲＴＩＦ（８０字表示／４０字表示切換）ＶＨＤＬプログラムリスト
前回にてやっとまともな（と思います）、ＣＲＴＩＦ（８０字表示／４０字表示切換）ＶＨＤＬプログラムができました。
修正をしたところについて、その部分だけを取り出して説明をしましたので、全体を通してのプログラムとしてはまだお見せしていませんでした。
とりあえずの区切りがついたところですので、下にＣＲＴＩＦ（８０字表示／４０字表示切換）ＶＨＤＬプログラムリストの全体をお見せします。
--vga controller 18/12/22 12/23 12/24 12/25 12/26 12/27
--19/1/12 1/13 1/29 3/24 3/25 3/26 3/27
--5/4 5/5 5/6
--5/7 vga & crt from vgac2j
--5/8
--5/9 80/40 5/10
--6/8 vgacrt1c from 1a
--6/9 6/10
--vgacrt1d
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
library ARITHMETIC;
use ARITHMETIC.std_logic_arith.all;
entity vgacrt1d is
PORT (
AHout:out std_logic_vector(7 downto 0);
ALout:out std_logic_vector(2 downto 0);
AHin:in std_logic_vector(7 downto 0);
ALin:in std_logic_vector(2 downto 0);
ROMadrs:out std_logic_vector(2 downto 0);
ROMDATA:in std_logic_vector(7 downto 0);
A11_15:in std_logic_vector(4 downto 0);
IOWR:in std_logic;
IORD:in std_logic;
MREQ:in std_logic;
MWR:in std_logic;
VRAMWR:out std_logic;
VRAMS:out std_logic;
D0IN:in std_logic;
D1IN:in std_logic;
D7OUT:out std_logic;
RGB_ROUT:out std_logic;
RGB_GOUT:out std_logic;
RGB_BOUT:out std_logic;
HSYNC:out std_logic;
VSYNC:out std_logic;
CRTVHSYNC:out std_logic;
CRTDSP:out std_logic;
Notused58:in std_logic;
Notused73:in std_logic;
Notused74:in std_logic;
SW80_40:in std_logic;
--T57:out std_logic;--vblnkwk
--T67:out std_logic;--vactive
--T68:out std_logic;--hblnkwk
T69:out std_logic;--hblnkwk2
--T70:out std_logic;
Resetin:in std_logic;
CKVGA:std_logic;--not used
CKIN :in std_logic);
end vgacrt1d;
architecture rtl of vgacrt1d is
signal cntr0:std_logic;
signal cntr1:std_logic_vector(3 downto 0);
signal cntr2:std_logic_vector(6 downto 0);
signal cntr3:std_logic_vector(8 downto 0);
signal ramadrswk:std_logic_vector(7 downto 0);
signal ramadrswk0:std_logic_vector(7 downto 0);
signal sftrgstr:std_logic_vector(7 downto 0);
signal hblnkwk:std_logic;
signal hblnkwk2:std_logic;
signal cntr3wk:std_logic;
signal vblnkwk:std_logic;
signal vrams2:std_logic;
signal vactive:std_logic;
signal rgbout:std_logic;
signal hsyncwk:std_logic;
signal vsyncwk:std_logic;
signal ck:std_logic;
signal cntr1_2:std_logic;
begin
--T57<=vblnkwk;
--T67<=vactive;
--T68<=hblnkwk;
--T69<=hblnkwk2;
Hsync<=cntr2(3);
Vsync<=cntr2(5);
--clock select
process(CKIN)
begin
if SW80_40='1' then
cntr0<=CKIN;
elsif SW80_40='0' then
if CKIN'event and CKIN='0' then
cntr0<=cntr0+'1';
end if;
end if;
end process;
--cntr1 & sftrgstr
process(cntr0)
begin
if cntr0'event and cntr0='0' then
if cntr1="0111" then
sftrgstr<=ROMDATA;
cntr1<="0000";
else
cntr1<=cntr1+"0001";
sftrgstr<=sftrgstr(6 downto 0) & '1';
end if;
end if;
end process;
--
--cntr2
cntr1_2<=cntr1(2);
process(cntr1_2)
begin
if cntr1_2'event and cntr1_2 = '0' then
if SW80_40='1' and cntr2="1101111" then
cntr2<="0000000";
elsif SW80_40='0' and cntr2="0110111" then
cntr2<="0000000";
else
cntr2 <= cntr2 +"0000001";
end if;
end if;
end process;
--hblnk,hsync
process(cntr2)
begin
--hblnkwk
if cntr2="0000000" then
hblnkwk<='1';
elsif SW80_40='1' and cntr2="1010000" then
hblnkwk<='0';
elsif SW80_40='0' and cntr2="0101000" then
hblnkwk<='0';
end if;
end process;
--
process(cntr2)
begin
--hblnkwk2
if cntr2="0000001" then
hblnkwk2<='1';
elsif SW80_40='1' and cntr2="1010001" then
hblnkwk2<='0';
elsif SW80_40='0' and cntr2="0101001" then
hblnkwk2<='0';
end if;
end process;
--
process(cntr2)
begin
--hsynkwk
if SW80_40='1' then
if cntr2="1011001" then
hsyncwk<='0';
elsif cntr2="1100000" then
hsyncwk<='1';
end if;
else
if cntr2="0101101" then
hsyncwk<='0';
elsif cntr2="0110000" then
hsyncwk<='1';
end if;
end if;
end process;
--
--cntr3
process(hblnkwk)
begin
if hblnkwk'event and hblnkwk = '1' then
cntr3 <= cntr3 +"000000001";
end if;
end process;
-- vblnk,vsync
process(cntr3)
begin
--vblnkwk
if cntr3(7)='0' then
vblnkwk<='1';
elsif cntr3(7 downto 3)="11001" then
vblnkwk<='0';
end if;
--vsyncwk
if cntr3(7 downto 3)="11011" then
vsyncwk<='0';
elsif cntr3(7 downto 4)="1110" then
vsyncwk<='1';
end if;
end process;
--ramadrs
process(cntr1_2)
begin
if cntr1_2'event and cntr1_2='0' then
if vblnkwk='0' then
ramadrswk<="00000000";
ramadrswk0<="00000000";
elsif cntr3(2 downto 0)="111" and hblnkwk = '0' then
ramadrswk0 <= ramadrswk;
elsif SW80_40='1' and cntr2="1010000" then
ramadrswk <= ramadrswk0;
elsif SW80_40='0' and cntr2="0101000" then
ramadrswk <= ramadrswk0;
elsif cntr2(2 downto 0)="111" and hblnkwk='1' then
ramadrswk<=ramadrswk+"00000001";
end if;
end if;
end process;
-- address select
-- vrams
process(MREQ,MWR)
begin
if MREQ='0' and MWR='0' and A11_15="11111" and vrams2='0' then
VRAMS<='0';
AHout<=AHin;
ALout<=ALin;
VRAMWR<=MWR;
else
VRAMS<='1';
AHout<=ramadrswk;
ALout<=cntr2(2 downto 0);
VRAMWR<='1';
end if;
end process;
-- vblnk read
-- i/o active vrams vactive
process(Resetin,AHin,ALin,IOWR)
begin
if Resetin='0' then
vrams2<='1';
vactive<='1';
elsif AHin(4 downto 0)="11010" and ALin(2)='0' and IOWR='0' then
vrams2<=not D0IN;
vactive<=not D1IN;
end if;
end process;
--see note 5/6
process(AHin,ALin,IORD)
begin
if AHin(4 downto 0)="11010" and ALin(2)='0' and IORD='0' and vblnkwk='0' then
D7OUT<='0';
else
D7OUT<='Z';
end if;
end process;
rgbout<=sftrgstr(7) and hblnkwk2 and vblnkwk and vactive;
--RGB_ROUT<=rgbout;
--RGB_GOUT<=rgbout;
--RGB_BOUT<=rgbout;
ROMadrs<=cntr3(2 downto 0);
T69<=hblnkwk2;--test
--T70<=hblnkwk;--test
--crt out
process(rgbout)
begin
if rgbout='0' then
CRTDSP<='0';
else
CRTDSP<='Z';
end if;
end process;
process(hsyncwk,vsyncwk)
begin
if hsyncwk='0' or vsyncwk='0' then
CRTVHSYNC<='0';
else
CRTVHSYNC<='Z';
end if;
end process;

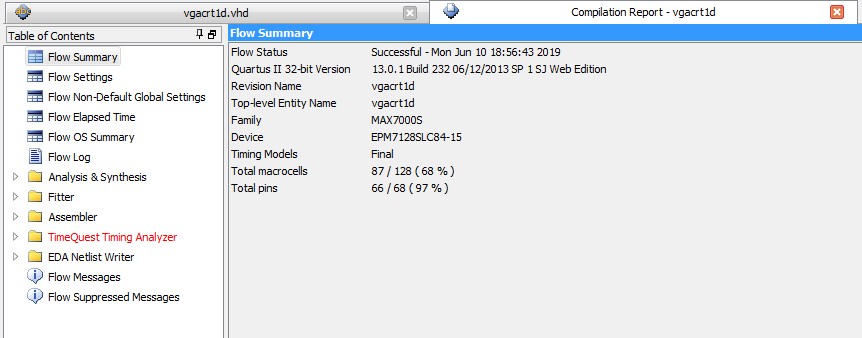

end rtl;
|
